Euro Hinge Jig-Concealed Hinge Jig, Suitable for Frame and Frameless Cabinet Door Hinges- 35mm Drill Bit by Milescraft

The Milescraft 1342 Euro Hinge Jig helps create and install perfect 35mm concealed hinges on your cabinet door projects. Perfect repeatable holes every time on both framed and frameless cabinets. The Jig aligns to 6 common cup hole edge distance settings and an edge locator pin quickly sets the cup hole vertical position at 3 in. or 4 in. The Metal bushing drill guide provides accurate, repeatable drilling that doesn’t wear down. Built-in-depth gauges on the left and right sides of the jig allow you to set your hinge hole depth to 1 of 2 depths. The marking guide aligns measurements from door to frame. Included in the package are: Allen key, 1/16 in. drill bit for pilot holes, locator pin, and cabinet locator measuring tool.

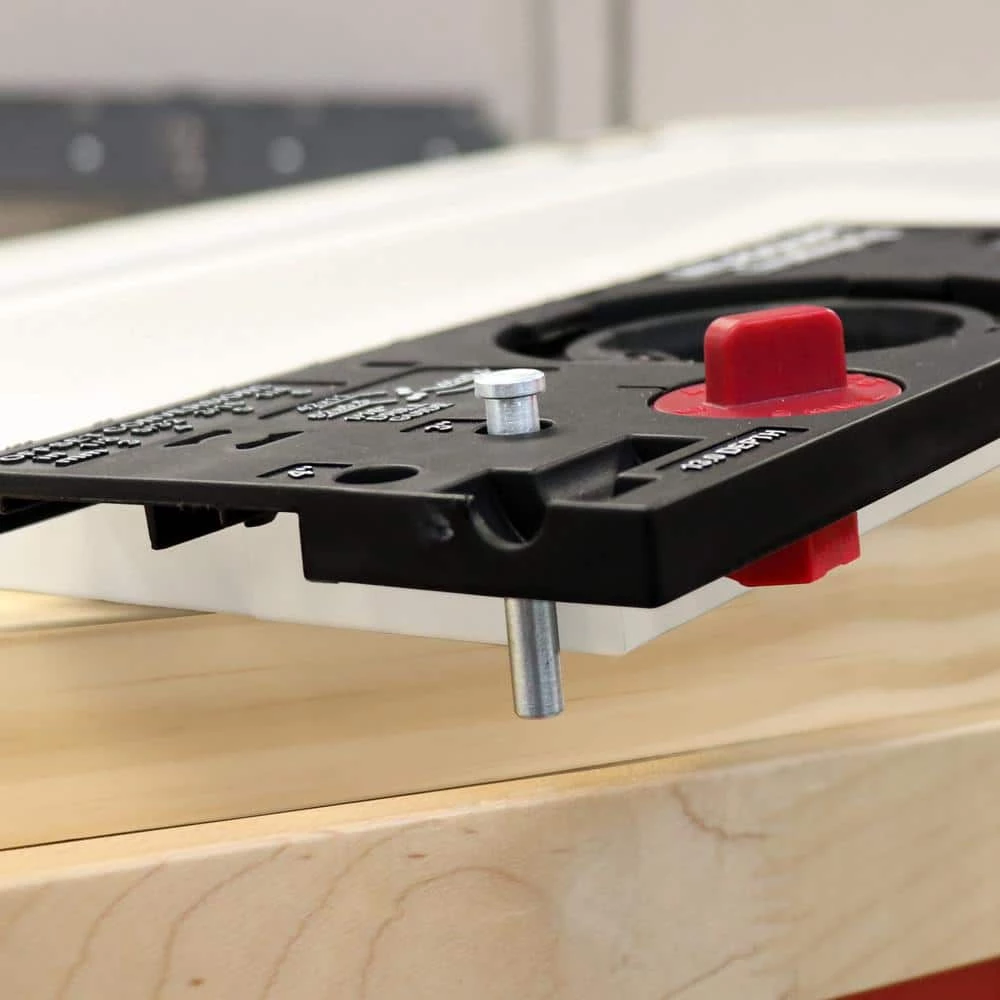

• 2 edge alignment knobs position the cup hole from the edge of the door, while the edge pin sets the distance from the top/bottom
• Drill guide with metal bushing locks into jig and creates a perfectly straight hinge cup hole
• Guide bushings built into the body of the jig let you pre-drill pilot holes in 4 common locations, making sure hinges are straight and the door closes true, the 1/16 in. Dia drill bit for pilot holes is included
• Easily set your cup hole depth on the included 35mm drill bit using the built-in depth setting fixtures
• Hinge marking guide detaches from the bottom of the jig and allows you to transfer and mark centerlines and hinge location to cabinet wall or frame
